Standard Liftgates

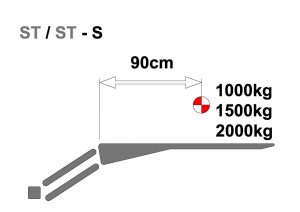

L-Type
Lifting capacity:
500, 750, 1000, 1500, 2000 & 2500kg
Material: main- and flip over section:

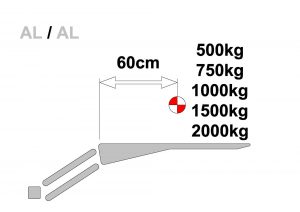

- AL/AL – Aluminum/Aluminum

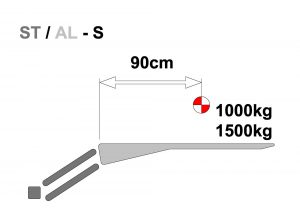

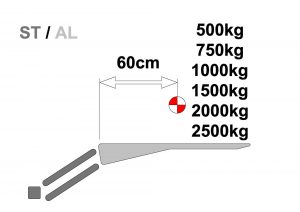

- ST/AL – Steel/Aluminum

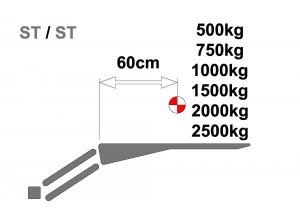

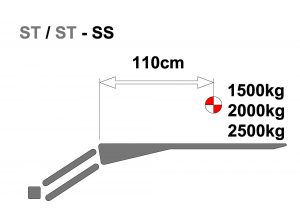

- ST/ST – Steel/Steel
Design:
- hydraulic tilting
- 4 cylinders (2 lifting & 2 tilting cylinders)
- steel construction, hot-dip galvanized
Options:
- 2-button top control or remote control
- 3-button foot control
- roll-off safety device
- warning lights
- First aid box

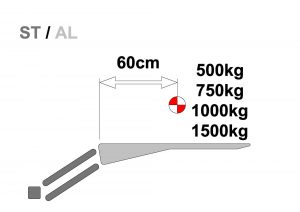

LTK-Type
Load capadity:
500 kg, 750 kg, 1000 kg & 1500 kg
Material: (Main- and flip-over section)
- ST/AL – Steel/Aluminium
- ST/ST – Steel/Steel
Design:
- mechanical platform adjustment
- 4 cylinders (2 lifting & 2 tilting cylinders)
- Steel construction hot-dip galvanized
Options:
- 2-button overhead control or remote control
- 3-button foot control
- Roll-off safety device
- Warning lights
- First-aid box

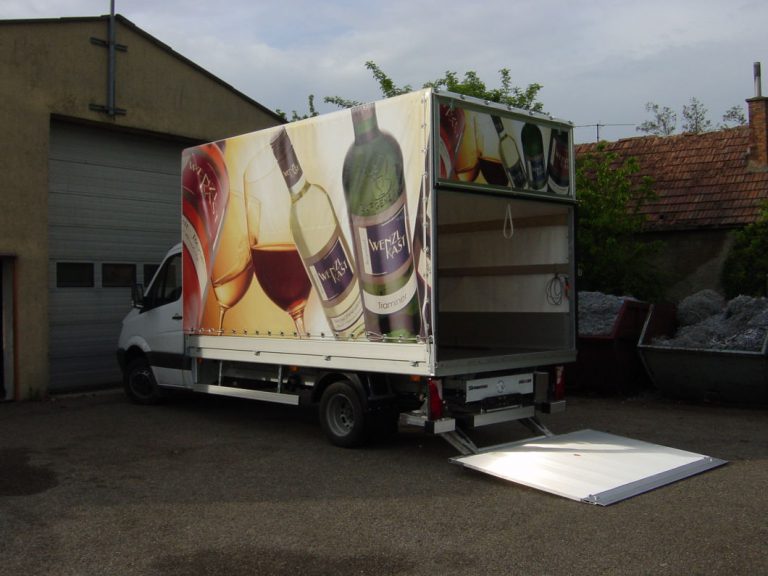

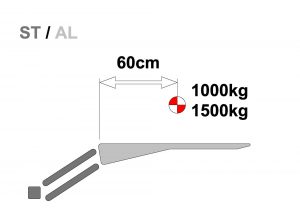

HTK-Type
Load capacity:
500, 750, 1000 & 1500 kg
Material: (Main- and flip-over section)

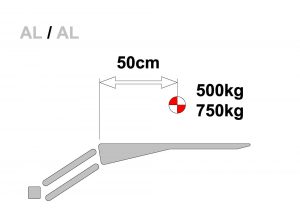

- AL/AL – Aluminium/Aluminium

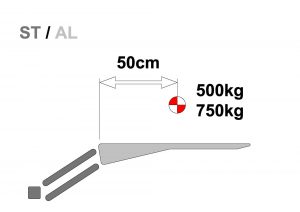

- ST/AL – Steel/Aluminium
- ST/M– Steel/Mesh (expanded mesh)
Design:
- mechanical platform adjustment
- 3 cylinders (2 lifting & 1 closing cylinder in one hydraulic circuit)
- steel construction hot dip galvanized
Options:
- 2-button overhead control or remote control
- Roll-off safety device
- Warning lights
- First aid box
MTK-Type
Load capacity:
500 kg & 750 kg
Material: (Main- and flip-over section)
- AL/AL – Aluminium/Aluminium
- ST/AL – Steel/Aluminium

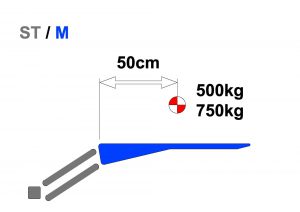

- ST/M – Steel/Mesh (expanded mesh)
Design:
- mechanical platform adjustment
- 2 cylinders (2 lifting cylinders)
- Flip-over section is closed and opened manually
- Steel construction hot-dip galvanized
Options:
- 2-button top control or radio remote control
- 3-button foot control
- Roll-off safety device
- Warning lights
- First-aid box
